Session Management Test Cases That Prove Expiry Across the Browser, Server and Every Active Context

The Minimum Session Management Smoke Test

When release time is limited, begin with these ten cases.

The smoke set verifies the primary lifecycle. It does not replace cookie-attribute testing, token cryptography review, penetration testing or a dedicated logout guide.

Define the Session Acceptance Contract First

Session test cases cannot have reliable expected results until the product policy is explicit.

Example session acceptance contract

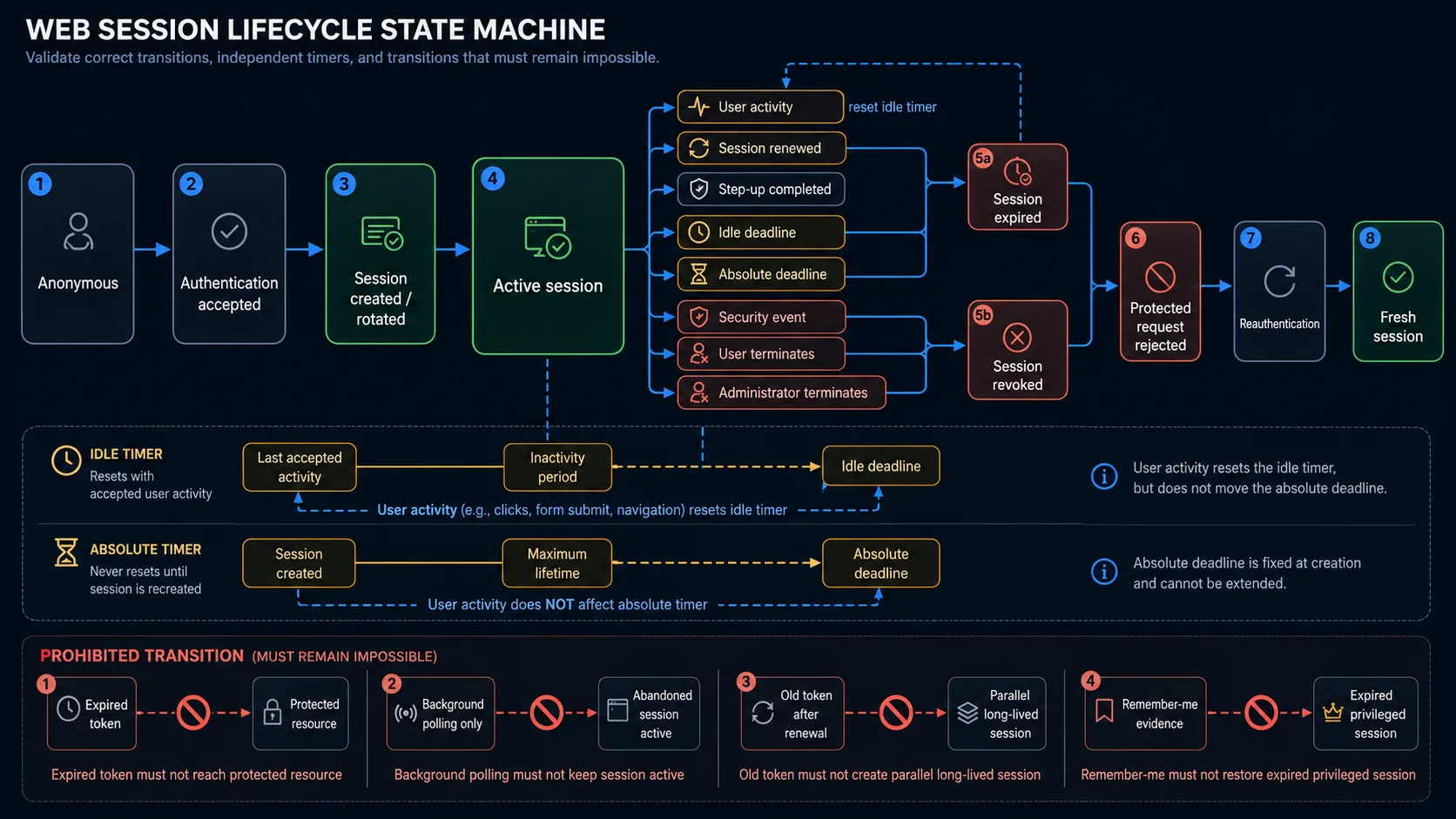

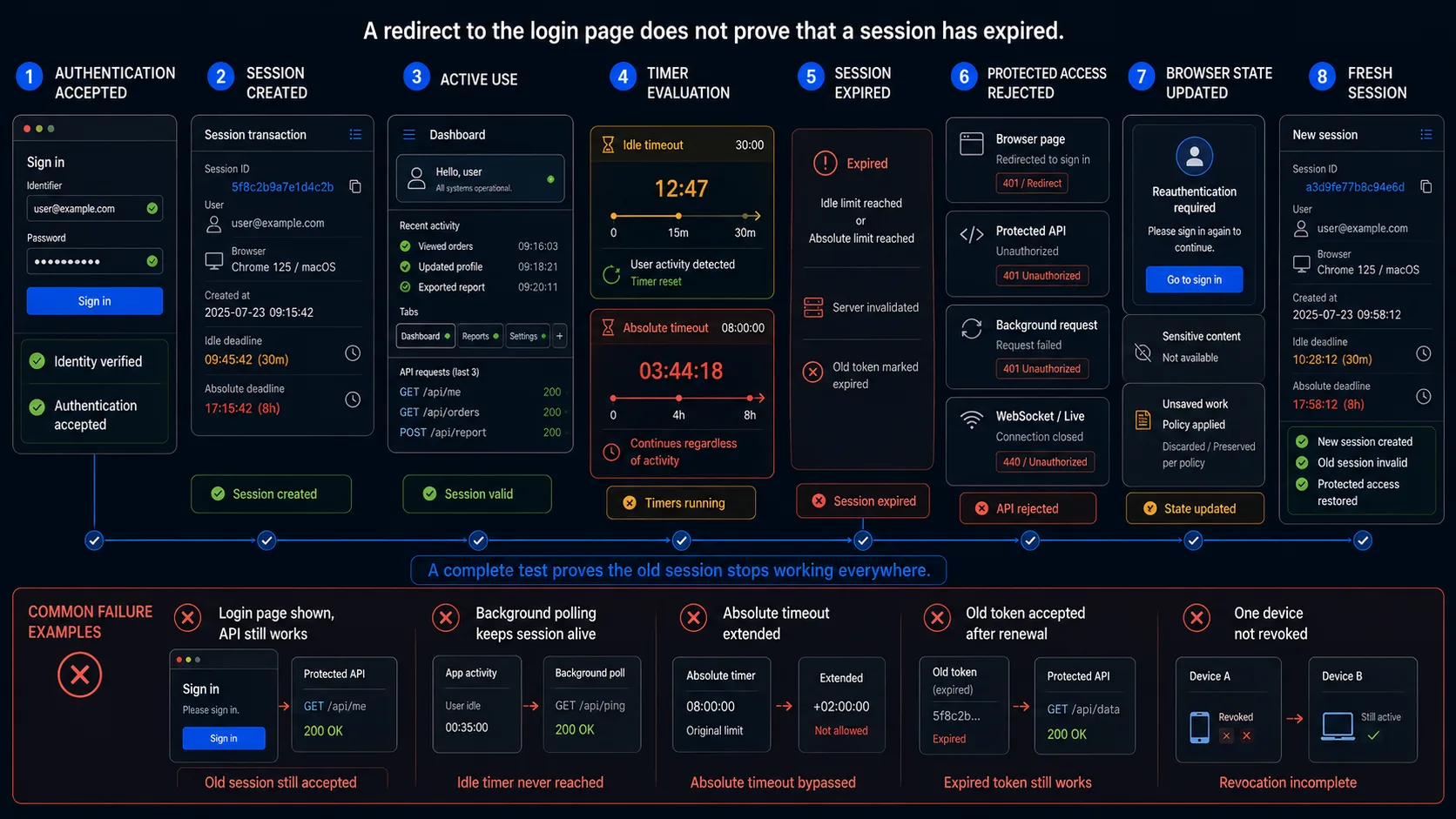

Model the Complete Session Lifecycle

A session is a state machine with several independent timers and termination paths.

1. Anonymous or pre-authentication state
2. Authentication accepted
3. Authenticated session created or rotated
4. Active use
5. Inactivity timer reset by documented user activity
6. Session secret renewed
7. Step-up or reauthentication performed
8. Idle timeout reached
9. Absolute timeout reached
10. Security event revokes session
11. User or administrator terminates session
12. Expired or revoked state
13. Protected requests rejected
14. Browser state cleared or ignored
15. Safe public or reauthentication state
16. Fresh authentication creates a new session

Define prohibited transitions:

Session Creation, Binding and Rotation Test Cases

Idle Session Timeout Test Cases

OWASP requires timeout enforcement on the server and recommends testing that old session values cannot be restored or replayed after expiration.

Absolute Timeout Test Cases

NIST distinguishes overall and inactivity timeout. Activity resets inactivity, while successful reauthentication may reset both; when either applicable timeout expires, the session must terminate.

Renewal and Sliding-Expiration Test Cases

Remember Me and Persistent Session Test Cases

Multiple Tabs, Background Activity and Offline Test Cases

Concurrent Session and Device Test Cases

Concurrent sessions are not automatically a defect. The defect is an undocumented or unenforced policy, missing user visibility, or failed termination of selected sessions.

Session Revocation and Reauthentication Test Cases

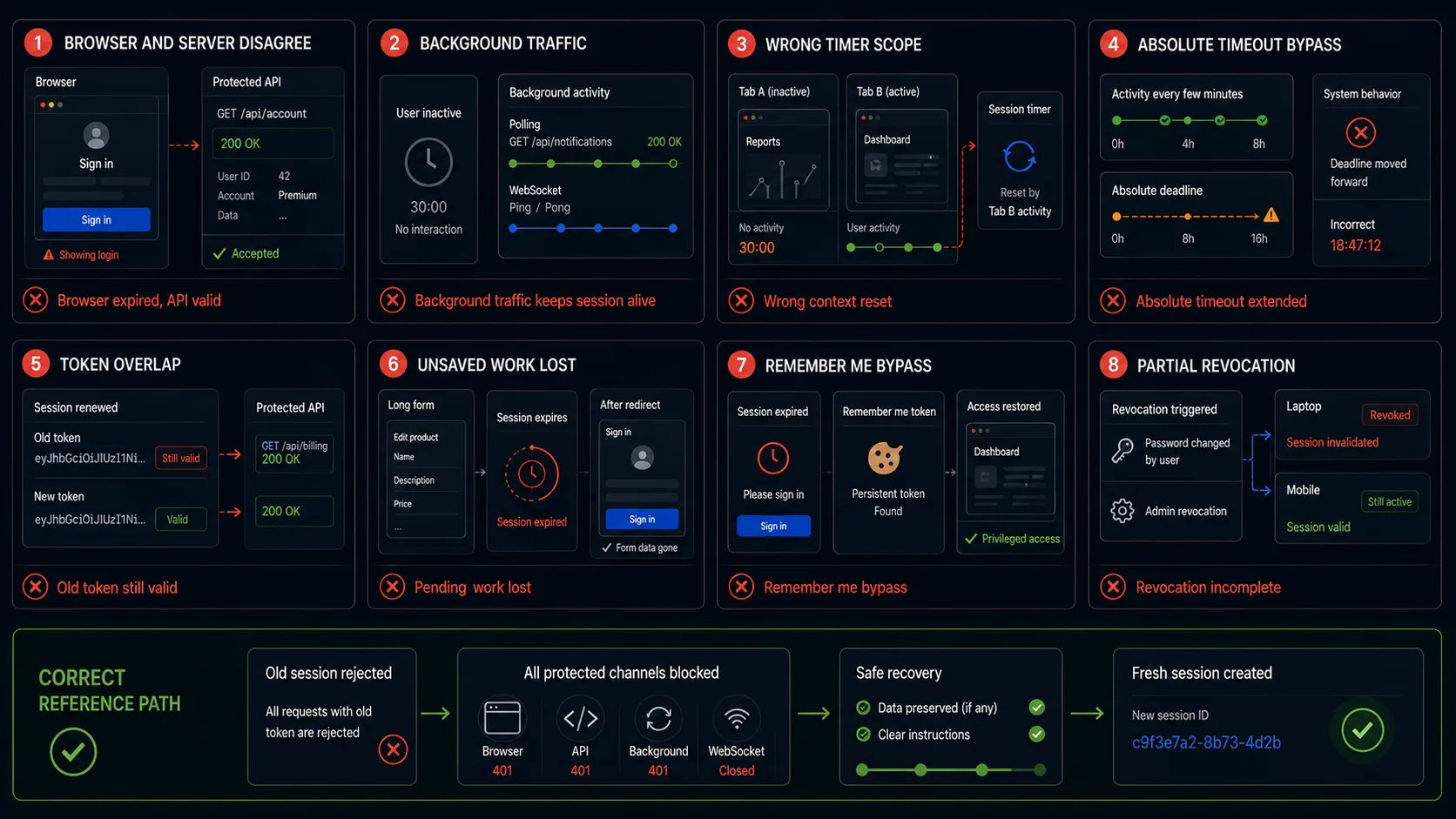

The Most Important Session Failure Patterns

The browser says expired, but the API still accepts the token

A client-side timer or redirect can create a false sense of security. Replay the token against representative protected APIs and inspect the server-side session record.

Background polling prevents idle expiration

Analytics, heartbeats, WebSocket messages, autosave and data refresh can look like activity to the server even when the user has left. Define user activity separately from application traffic.

One tab resets the timer for unrelated contexts

Tabs may share one browser session, but devices and independent contexts usually require separate timers. Verify the intended scope of each activity event.

Frequent activity defeats the absolute timeout

A rolling inactivity timer is not an absolute lifetime. Persist the session through repeated activity and confirm the maximum age still ends or reauthenticates it.

Old and new tokens remain valid after renewal

A short overlap may be necessary for concurrent requests, but unlimited overlap turns rotation into session duplication. Test the exact transition window.

The user loses unsaved work without a safe recovery path

Security does not require silent data loss. Long forms and multi-step workflows need warning, draft preservation, reauthentication or an explicit safe failure.

Remember me silently recreates a privileged session

Persistent evidence should follow a documented authentication policy. It must not convert an expired or revoked session into indefinite privileged access.

Revocation reaches one device but not the others

Password changes, account compromise and administrator actions require an explicit scope. Test every active session, refresh path and persistent token in that scope.

How to Automate Long Session Timeouts Without Waiting in Every Test

A one-hour production timeout does not require every regression test to wait for one hour. Separate mechanism testing from configuration-integrity testing.

Do not create a production bypass. A test-only clock, short policy or session fixture must be isolated and unavailable in production. Do not add a query parameter, magic header, browser-only function or hard-coded user that bypasses session enforcement.

For every accelerated case, preserve the same state transition:

1. Active session
2. Controlled passage of idle or absolute time
3. Server marks session expired
4. Protected request is rejected
5. Browser maps the expired state
6. Reauthentication creates a fresh session

What Each Testing Layer Can Prove

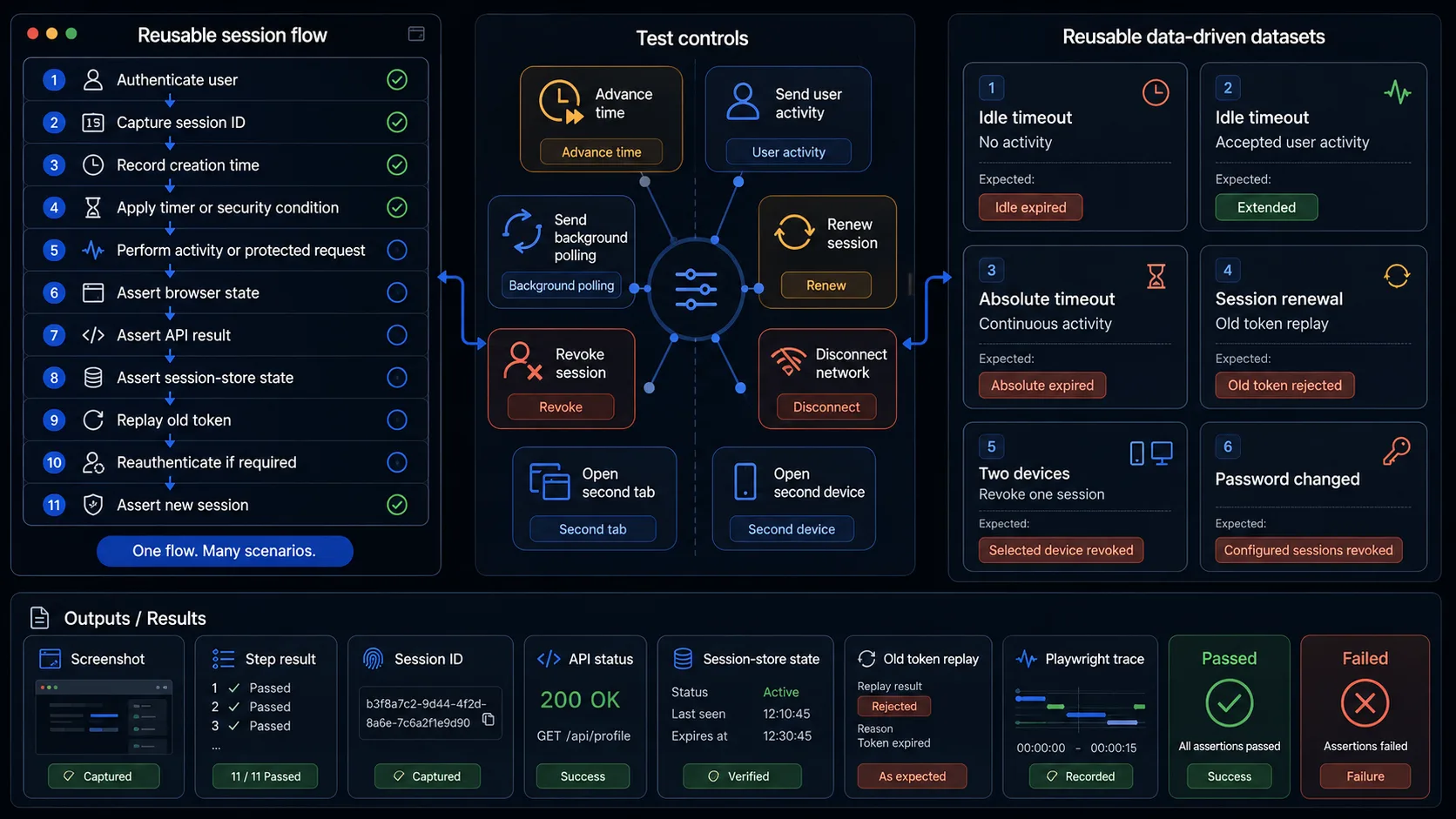

Automating Session Management Test Cases

Separate the reusable browser journey from the timer policy and expected server state.

1. Authenticate as {{USER}}
2. Capture {{SESSION_ID}}
3. Record {{SESSION_CREATED_AT}}
4. Set or wait for {{SESSION_CONDITION}}
5. Perform {{ACTIVITY_OR_REQUEST}}
6. Assert {{BROWSER_STATE}}
7. Assert {{API_RESULT}}
8. Assert {{SESSION_STORE_STATE}}
9. Assert {{OLD_TOKEN_REPLAY}}
10. If required, reauthenticate
11. Assert {{NEW_SESSION_ID}}
12. Assert {{RESTORED_DESTINATION}}

Idle-timeout dataset

{
  "name": "idle_timeout_rejects_browser_and_api",
  "policy": {
    "idleSeconds": 60,
    "absoluteSeconds": 600
  },
  "activity": "none",
  "advanceSeconds": 61,
  "expected": {
    "browserState": "reauthentication-required",
    "apiStatus": 401,
    "oldSessionState": "expired",
    "oldTokenReplayAccepted": false
  }
}

Absolute-timeout dataset

{
  "name": "user_activity_cannot_extend_absolute_lifetime",
  "policy": {
    "idleSeconds": 60,
    "absoluteSeconds": 180
  },
  "activity": {
    "type": "accepted-user-request",
    "everySeconds": 30
  },
  "advanceSeconds": 181,
  "expected": {
    "sessionState": "expired",
    "protectedRouteAccessible": false,
    "reauthenticationRequired": true
  }
}

Renewal dataset

{
  "name": "old_token_rejected_after_rotation_overlap",
  "policy": {
    "renewAfterSeconds": 90,
    "overlapSeconds": 5
  },
  "expected": {
    "newTokenIssued": true,
    "oldTokenAcceptedDuringOverlap": true,
    "oldTokenAcceptedAfterOverlap": false
  }
}

Use names based on the session condition and protected outcome, not session_test_4 or timeout_negative_2.

What Browser Automation Should Not Claim

• session identifiers have sufficient entropy
• cookies and tokens are cryptographically protected against every attack
• all token-signing and validation implementations are secure
• distributed session stores remain consistent under every infrastructure failure
• all session hijacking techniques are prevented
• revocation propagates within every production latency objective
• identity-provider and relying-party protocol conformance is complete
• mobile native secure storage is correctly implemented
• all browser-cache and service-worker edge cases are absent
• production timeout values are correct unless configuration integrity is checked separately

Browser automation is still essential because it proves the real user journey and detects disagreements between visible state, protected requests, tabs, storage and reauthentication.

Session Management Testing Checklist

• authentication creates or safely rotates the session identifier
• the session resolves to the correct user, tenant, role and assurance level
• idle and absolute timeout values are documented separately
• before, at and after boundary cases are tested with server time
• only documented activity resets inactivity
• mouse movement or typing without a request follows the intended policy
• polling, analytics, heartbeat and WebSocket traffic cannot silently simulate user presence
• client clock, cookie expiry or local storage cannot extend server lifetime
• expired tokens fail in representative protected APIs
• restored old tokens and browser history cannot revive the session
• warnings are timed correctly, accessible and consistent across pages
• continuous activity cannot defeat the absolute timeout
• long forms, uploads and multi-step workflows have deterministic expiry behaviour
• session renewal rotates secrets and limits old/new overlap
• refresh mechanisms cannot resurrect an expired or revoked session
• remember-me evidence remains separate from the expired authenticated session
• remember-me state is account-specific and revocable
• tabs and independent browser contexts follow the documented sharing policy
• offline queued requests fail safely after server expiry
• restored tabs and SPA caches do not present stale protected state as live access
• concurrent sessions follow the documented count and eviction policy
• activity and timeout are tracked per intended session or device
• users can view and terminate selected active sessions when the product provides that control
• password change, account disablement, factor replacement and compromise events revoke the intended sessions
• reauthentication failure leaves protected actions blocked
• successful reauthentication creates a fresh permitted session or assurance state
• accelerated tests are isolated from production
• a separate configuration check verifies the deployed timeout values

Final acceptance criterion. Do not accept: “After 15 minutes, the login page appeared.” Accept: “At the documented boundary, the server rejected the old session across protected APIs and relevant contexts, background traffic could not keep it alive, pending work followed policy, and restored access required a fresh permitted authentication event.”

Frequently Asked Questions

What are the most important session timeout test cases?

Test immediately before, at and after the idle limit; replay the expired token against protected APIs; test activity classification, absolute lifetime, multiple tabs, background requests, pending forms, revocation and fresh reauthentication.

What is the difference between idle and absolute timeout?

Idle timeout is based on the time since accepted activity. Absolute timeout limits the total session age regardless of activity. They require separate timers, boundary cases and expected results.

Should activity in another tab reset the timeout?

It depends on whether the tabs share one browser session and whether that request qualifies as user activity. The product must define the scope; the test should not assume either outcome.

How can a one-hour timeout be automated?

Use short real values or controlled server time for frequent mechanism tests, verify deployed configuration separately, and reserve a small scheduled set for real-duration production-like checks.

Does clearing the cookie prove that the session expired?

No. The server must reject the old identifier. Restoring or replaying it against protected APIs is the stronger proof.

Is remember me the same as a long session?

Not necessarily. A safer design may store limited persistent reauthentication evidence and create a new session later. Test the actual policy rather than assuming the old authenticated session remains alive.

Automate the Repeatable Session Journey

WrightTest lets teams record the browser part of a session flow, replace fixed users and timing policies with named datasets, run scenarios independently, and inspect screenshots, step results, errors and Playwright traces.

1. Which user and session started the test
2. Which timer or security event changed the state
3. Which browser action crossed the boundary
4. Whether the protected request was accepted or rejected
5. Whether other tabs or devices agreed
6. Whether the old token remained reusable
7. Whether reauthentication created a fresh session
8. Where a failed journey stopped

Use controlled time, isolated session fixtures and API assertions for states that should not require long wall-clock waits. Keep at least one configuration-integrity check and a small production-like duration suite.

Browser checks can be exported to Playwright .spec.ts files when they need to move into an existing repository or CI pipeline.
